智慧家庭 聰明用電
ST&T 實現智慧家庭理想。「智慧插座」能讓您遠端遙控家中的電器，並設置排程或定時器來節約能源。

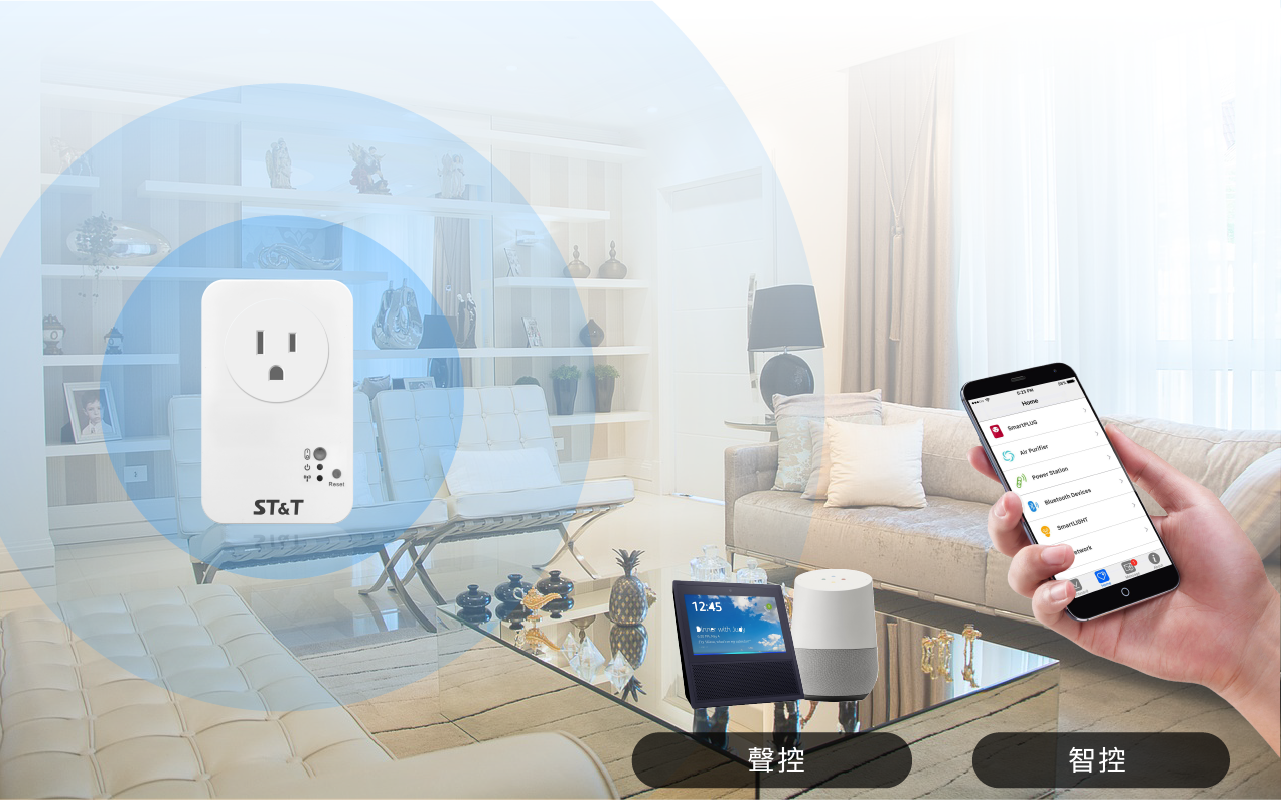

智慧控制 隨心所欲
可透過手機APP 遠端操控，不在家也能開關電器。現在ST&T智慧裝置更能與Amazon Alexa及Google Home 連接，想做什麼只要說一聲。
智慧指示色環
即時顯示智慧插座狀態AP680/SPM285/SPM295具此功能
智慧家庭 一手掌握
下載 APP，即可加入所有不同類別的智慧裝置隨心控制、盡在指尖
遠端監控
透過手機APP，不在家也能控制
排程與定時器
設定排程或定時器，節省耗電
紀錄與資訊圖表
查看用電紀錄與用電趨勢
訊息通知
發送 APP 訊息或Email 通知
下載APP
現在就免費下載，開始享受你的智慧生活

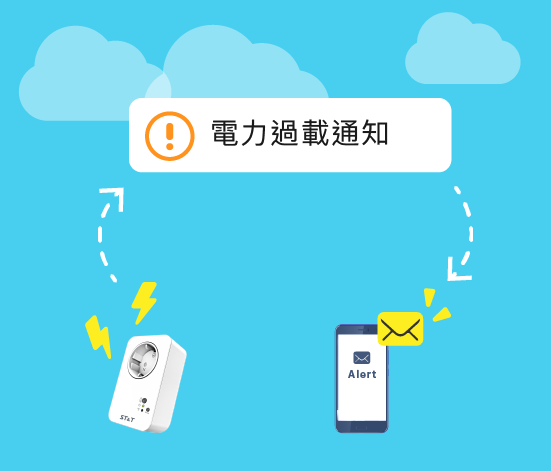

過載自動斷電保護
電力過載時，智慧插座將自動關閉電源，避免危險發生
即時通知
可設定 APP 訊息或 Email 通知能源管理 更加簡單

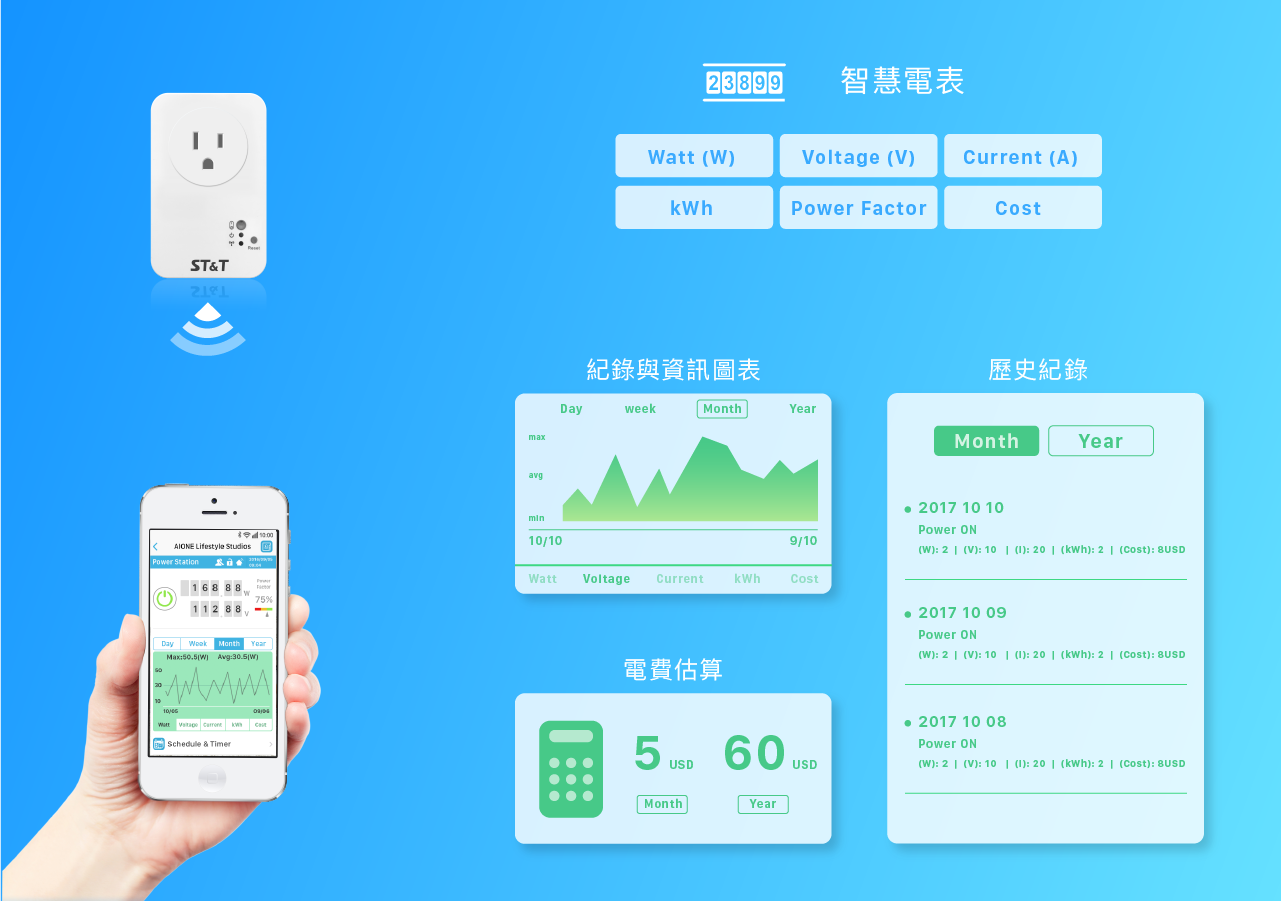

智慧插座具電錶功能，能監測及分析家電用電狀況，讓您能更輕鬆地管理居家能源使用
規格
| Model No. | SPM185 | SPM285 | SPM295 | AP680 |
|---|---|---|---|---|
| Product Name | SmartPlug with Power Meter | SmartPlug with Power Meter | SmartPlug with ECO Sensor (Temperature/Humidity) |
aPowerPlug with Power Meter |
| Connector Interface | Switch Button(Green) Reset Button : Press the button 10 seconds |
Switch Button(Green) Reset Button : Press the button 10 seconds |
Switch Button(Green) Reset Button : Press the button 10 seconds |
Switch Button Reset Button : Press the button 5 seconds |
| LED Function | Power Indicator(Green) WiFi Indicator(Green) Light on : WiFi preparing Light flashing : WiFi on (ready to connect to smartphone) or data transmitting |
Power Indicator(Green) WiFi Indicator(Green) Light on : WiFi preparing Light flashing : WiFi on (ready to connect to smartphone) or data transmitting |
Power Indicator(Green) WiFi Indicator(Green) Light on : WiFi preparing Light flashing : WiFi on (ready to connect to smartphone) or data transmitting |
Color Ring Indicator : Light flashing : not connected to APP Purple : power off Blue : power on Green : schedule or timer set Red : power over 10A and being cut down |
| WiFi / Bluetooth | WiFi : Complies with IEEE 802.11b/g/n standards Supports AP and Repeater mode Provides up to 150Mbps transmission rates Supports various Wi-Fi sharing range Support SSID broadcast control Supports 64/128-bits WEP/ WPA/ WPA2 2dBi Antenna |
WiFi : Complies with IEEE 802.11b/g/n standards Supports AP and Repeater mode Provides up to 150Mbps transmission rates Supports various Wi-Fi sharing range Support SSID broadcast control Supports 64/128-bits WEP/ WPA/ WPA2 2dBi Antenna |
WiFi : Complies with IEEE 802.11b/g/n standards Supports AP and Repeater mode Provides up to 150Mbps transmission rates Supports various Wi-Fi sharing range Support SSID broadcast control Supports 64/128-bits WEP/ WPA/ WPA2 2dBi Antenna |
Bluetooth : Chip Solution: TI CC2541 OS: RTOS BT4.0: CC2541 |
| Specifications Description | Power : 100-240VAC, Device standby power ⟨ 3W Emission Power : 12-15 dBm Switch : Support Lighted manual on/ off Support Power Switch Remote control via Internet, local control via WiFi |
Power : 100-240VAC, Device standby power ⟨ 3W Emission Power : 12-15 dBm Switch : Support Lighted manual on/ off Support Power Switch Remote control via Internet, local control via WiFi |
Power : 100-240VAC, Device standby power ⟨ 3W Emission Power : 12-15 dBm Switch : Support Lighted manual on/ off Support Power Switch Remote control via Internet, local control via WiFi (Optional) Sensors: Temperature/Humidity |
Power : 100-240VAC, Device standby power ⟨ 1W Switch : Support Lighted manual on/ off Support Power Switch Local control via BT4.0 |
| Meter(Accuracy±8%) | V/A/W/Kwh/PF | V/A/W/Kwh/PF | V/A/W/Kwh/PF/ Temperature/Humidity |
V/A/W/Kwh/PF |
| Power Outlet | (EU)100-240VAC, 16A, 50/60Hz (US)100-120VAC, 15A, 60Hz (UK)100-240VAC, 13A, 50/60Hz (FR)100-240VAC, 16A, 50/60Hz (CH)100-240VAC, 10A, 50/60Hz (AU)100-240VAC, 10A, 50/60Hz |
(EU)100-240VAC, 16A, 50/60Hz (US)100-120VAC, 15A, 60Hz (UK)100-240VAC, 13A, 50/60Hz (FR)100-240VAC, 16A, 50/60Hz (CH)100-240VAC, 10A, 50/60Hz (AU)100-240VAC, 10A, 50/60Hz |
(EU)100-240VAC, 16A, 50/60Hz (US)100-120VAC, 15A, 60Hz (UK)100-240VAC, 13A, 50/60Hz (FR)100-240VAC, 16A, 50/60Hz (CH)100-240VAC, 10A, 50/60Hz (AU)100-240VAC, 10A, 50/60Hz |
(EU)230VAC, 10A, 50/60Hz (US)100-120VAC, 10A, 60Hz |
| Cloud service | iOS/Android | iOS/Android | iOS/Android | iOS/Android |
| Dimensions | 105x64x40mm | 108x68x42mm | 113x68x42mm | 48x48x81 mm |
| Weight | 168 g | 172 kg | 176 kg | 80 kg |
| Certification | CE/FCC/LVD/NCC | CE/FCC/LVD | CE/FCC/LVD | CE/FCC/LVD/NCC |
