Start Home Automation
ST&T made home automation easier.
With “mySmartPlug”, you can remote control your home appliances and set up schedule or timer to save energy.

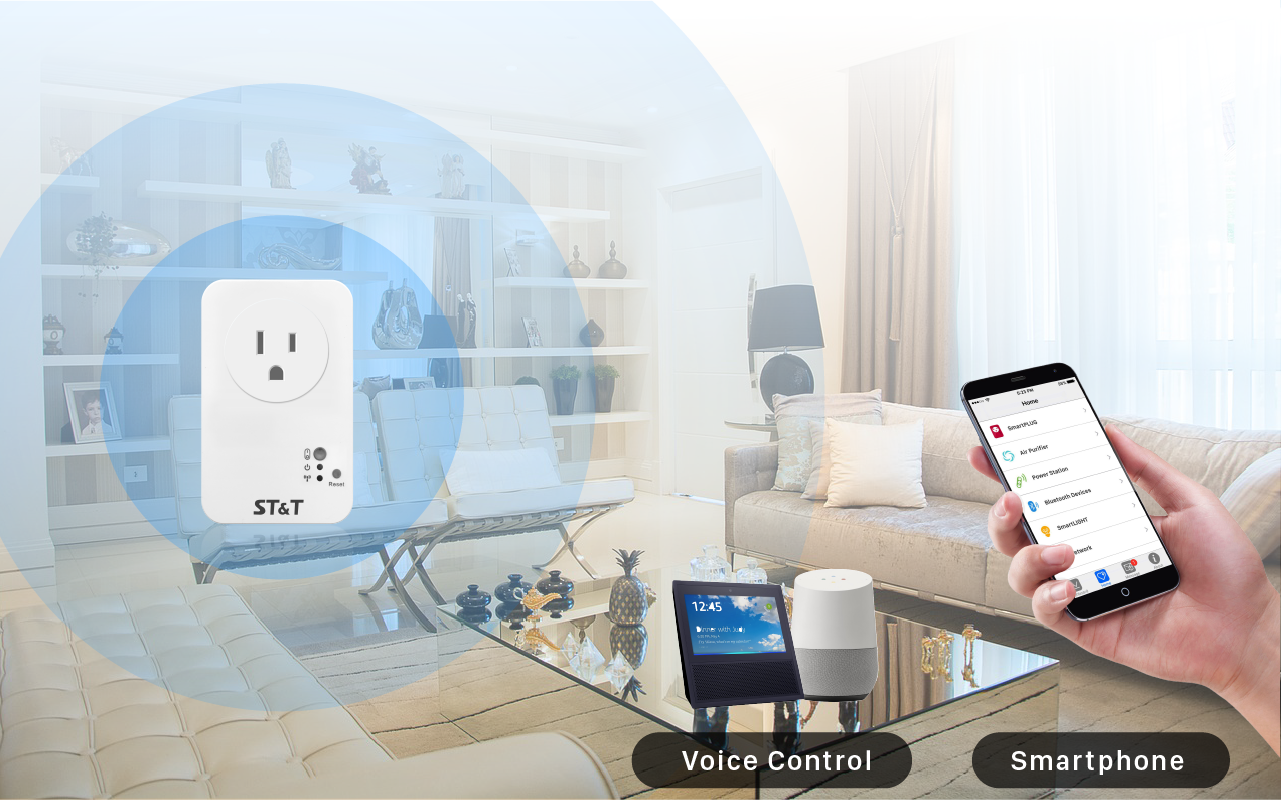

Control with The Way You Like
Remote control with smartphone. Now ST&T works with Amazon Alexa & Google Home. Simply tell them to do things for you.

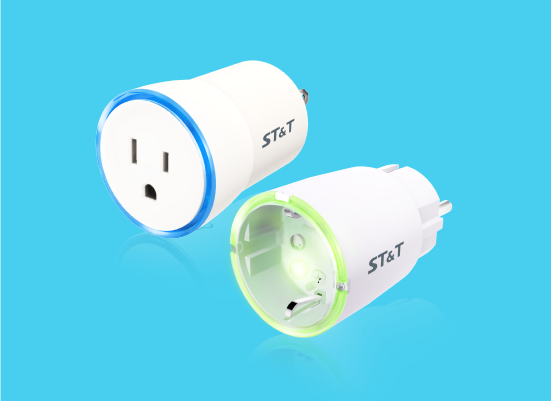

Color Ring Indicator
Real-time Display of Device Statusfeature available for AP680
Smart Home in Your Hand
Simply download the APP and control all your smart home appliances. Then you can run your home just on your smart phone.
Remote Monitor
Control with Smartphone APP

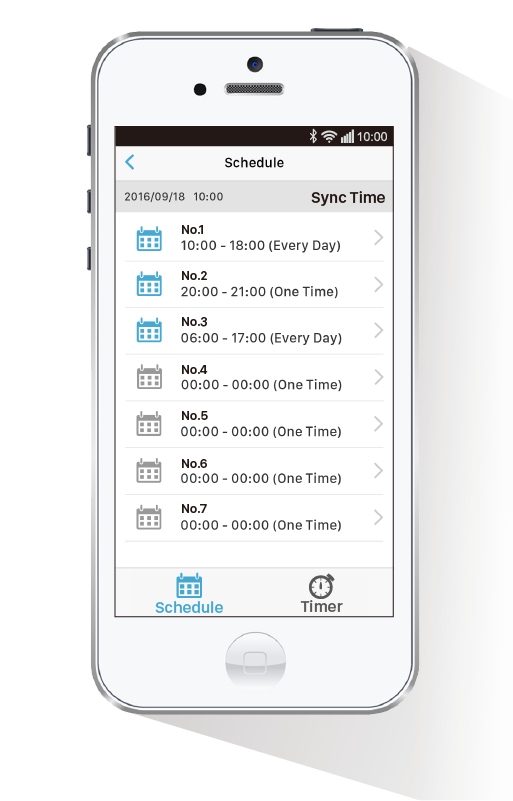

Schedule & Timer
Set Schedule & timer to save energy

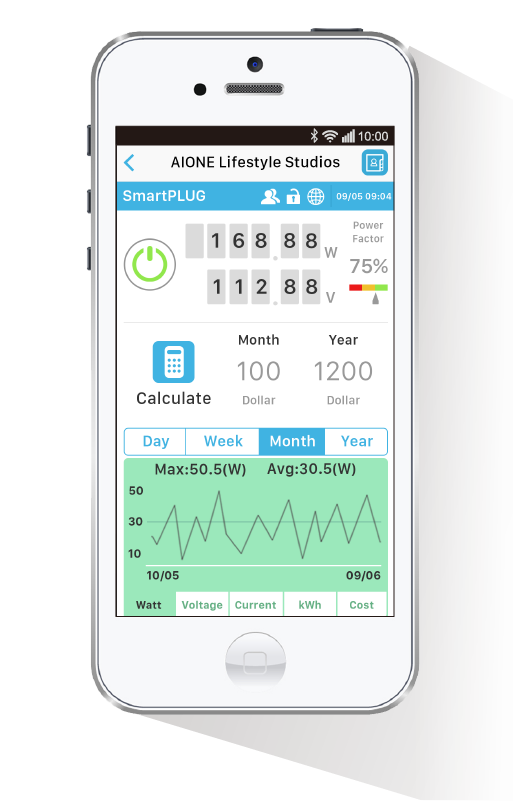

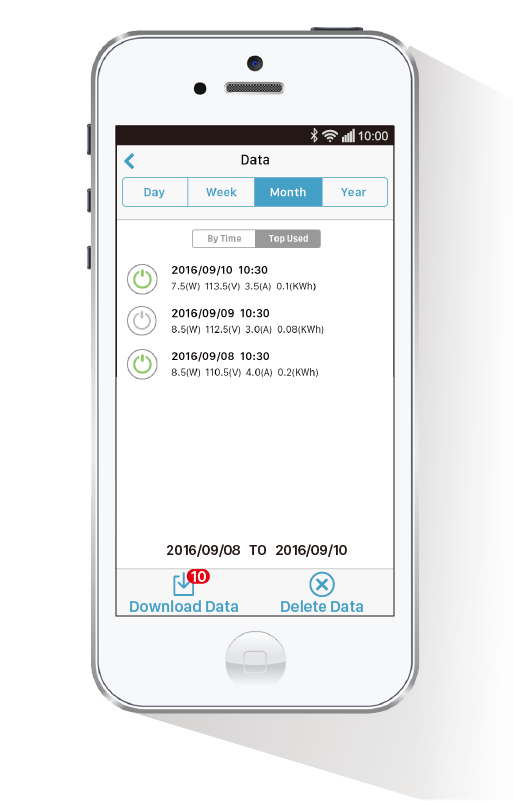

Record & Chart
View Electricity consumption history record
Notification
via APP message or email
Download APP
Download for free.Start to enjoy your ST&T Smart Home

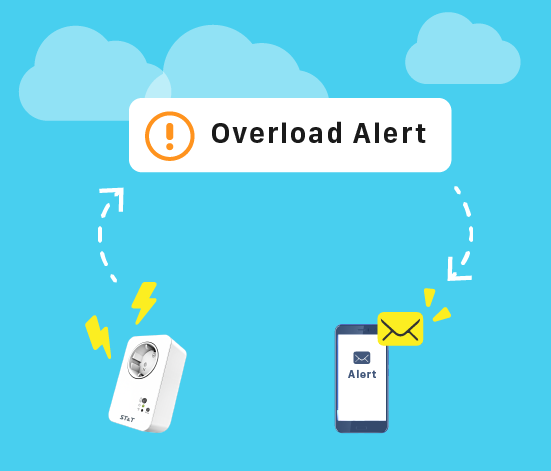

Overload Protection
SmartPLUG will be turned off automatically when power is overloaded.
Alert Message

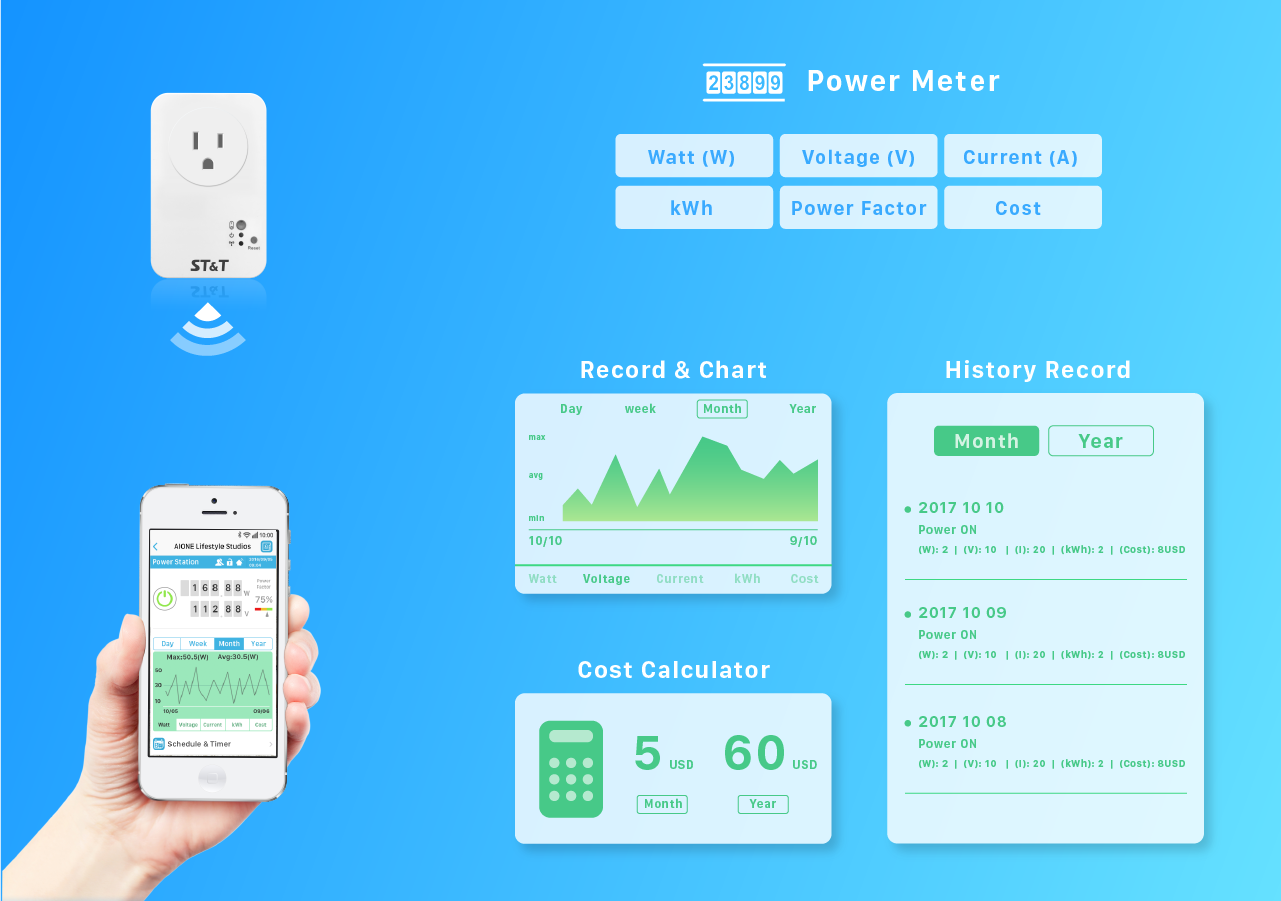

Alert message via APP message or email.Energy Management
With my SmartPLUG’s power meter feature, you can monitor and analyze your hom energy consumption easily.
Specification
| Model No. | SPM185 | SPM285 | SPM295 | AP680 |
|---|---|---|---|---|
| Product Name | SmartPlug with Power Meter | SmartPlug with Power Meter | SmartPlug with ECO Sensor (Temperature/Humidity) |
aPowerPlug with Power Meter |
| Connector Interface | Switch Button(Green) Reset Button : Press the button 10 seconds |
Switch Button(Green) Reset Button : Press the button 10 seconds |
Switch Button(Green) Reset Button : Press the button 10 seconds |
Switch Button Reset Button : Press the button 5 seconds |
| LED Function | Power Indicator(Green) WiFi Indicator(Green) Light on : WiFi preparing Light flashing : WiFi on (ready to connect to smartphone) or data transmitting |
Power Indicator(Green) WiFi Indicator(Green) Light on : WiFi preparing Light flashing : WiFi on (ready to connect to smartphone) or data transmitting |
Power Indicator(Green) WiFi Indicator(Green) Light on : WiFi preparing Light flashing : WiFi on (ready to connect to smartphone) or data transmitting |

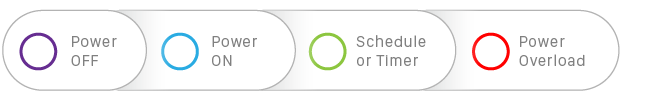

Color Ring Indicator : Light flashing : not connected to APP Purple : power off Blue : power on Green : schedule or timer set Red : power over 10A and being cut down |
| WiFi / Bluetooth | WiFi : Complies with IEEE 802.11b/g/n standards Supports AP and Repeater mode Provides up to 150Mbps transmission rates Supports various Wi-Fi sharing range Support SSID broadcast control Supports 64/128-bits WEP/ WPA/ WPA2 2dBi Antenna |
WiFi : Complies with IEEE 802.11b/g/n standards Supports AP and Repeater mode Provides up to 150Mbps transmission rates Supports various Wi-Fi sharing range Support SSID broadcast control Supports 64/128-bits WEP/ WPA/ WPA2 2dBi Antenna |
WiFi : Complies with IEEE 802.11b/g/n standards Supports AP and Repeater mode Provides up to 150Mbps transmission rates Supports various Wi-Fi sharing range Support SSID broadcast control Supports 64/128-bits WEP/ WPA/ WPA2 2dBi Antenna |
Bluetooth : Chip Solution: TI CC2541 OS: RTOS BT4.0: CC2541 |
| Specifications Description | Power : 100-240VAC, Device standby power ⟨ 3W Emission Power : 12-15 dBm Switch : Support Lighted manual on/ off Support Power Switch Remote control via Internet, local control via WiFi |
Power : 100-240VAC, Device standby power ⟨ 3W Emission Power : 12-15 dBm Switch : Support Lighted manual on/ off Support Power Switch Remote control via Internet, local control via WiFi |
Power : 100-240VAC, Device standby power ⟨ 3W Emission Power : 12-15 dBm Switch : Support Lighted manual on/ off Support Power Switch Remote control via Internet, local control via WiFi (Optional) Sensors: Temperature/Humidity |
Power : 100-240VAC, Device standby power ⟨ 1W Switch : Support Lighted manual on/ off Support Power Switch Local control via BT4.0 |
| Meter(Accuracy±8%) | V/A/W/Kwh/PF | V/A/W/Kwh/PF | V/A/W/Kwh/PF/ Temperature/Humidity |
V/A/W/Kwh/PF |
| Power Outlet | (EU)100-240VAC, 16A, 50/60Hz (US)100-120VAC, 15A, 60Hz (UK)100-240VAC, 13A, 50/60Hz (FR)100-240VAC, 16A, 50/60Hz (CH)100-240VAC, 10A, 50/60Hz (AU)100-240VAC, 10A, 50/60Hz |
(EU)100-240VAC, 16A, 50/60Hz (US)100-120VAC, 15A, 60Hz (UK)100-240VAC, 13A, 50/60Hz (FR)100-240VAC, 16A, 50/60Hz (CH)100-240VAC, 10A, 50/60Hz (AU)100-240VAC, 10A, 50/60Hz |
(EU)100-240VAC, 16A, 50/60Hz (US)100-120VAC, 15A, 60Hz (UK)100-240VAC, 13A, 50/60Hz (FR)100-240VAC, 16A, 50/60Hz (CH)100-240VAC, 10A, 50/60Hz (AU)100-240VAC, 10A, 50/60Hz |
(EU)230VAC, 10A, 50/60Hz (US)100-120VAC, 10A, 60Hz |
| Cloud service | iOS/Android | iOS/Android | iOS/Android | iOS/Android |
| Dimensions | 105x64x40mm | 108x68x42mm | 113x68x42mm | 48x48x81 mm |
| Weight | 168 g | 172 kg | 176 kg | 80 kg |
| Certification | CE/FCC/LVD/NCC | CE/FCC/LVD | CE/FCC/LVD | CE/FCC/LVD/NCC |
