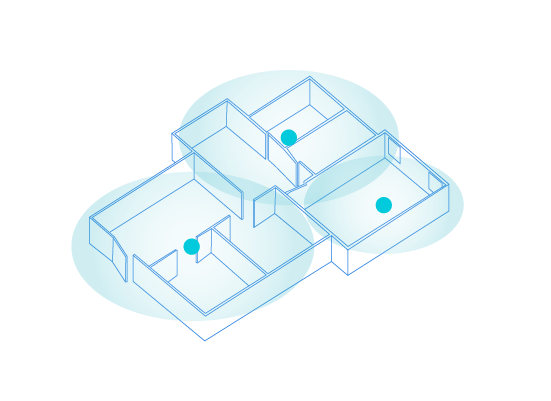

Better Network Coverage
With “mySmartLINK” PLC adapter, you can enjoy high-speed internet through out your house.
Smart Network Smart Home
Build up a network hotspot as long as there’s a wall socket and build a smart home without boundary.

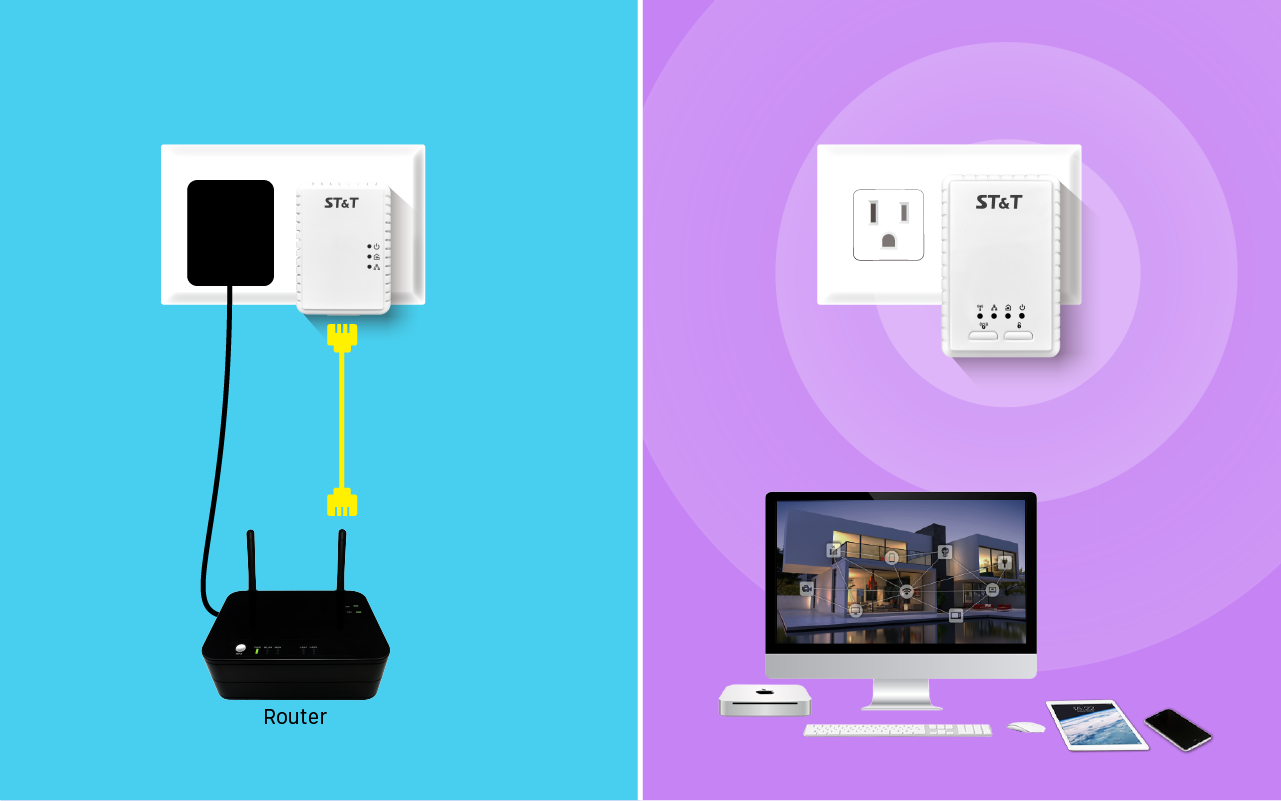

Easy Installation
Simply prepare a pair of “mySmartLINK” adapters to start your home network. Plug & Play installation without any complex network setting.
Smart Home in Your Hand
Simply download the APP and control all your smart home appliances. Then you can run your home just on your smart phone.
Smartphone Setup
Setup with Smartphone APP

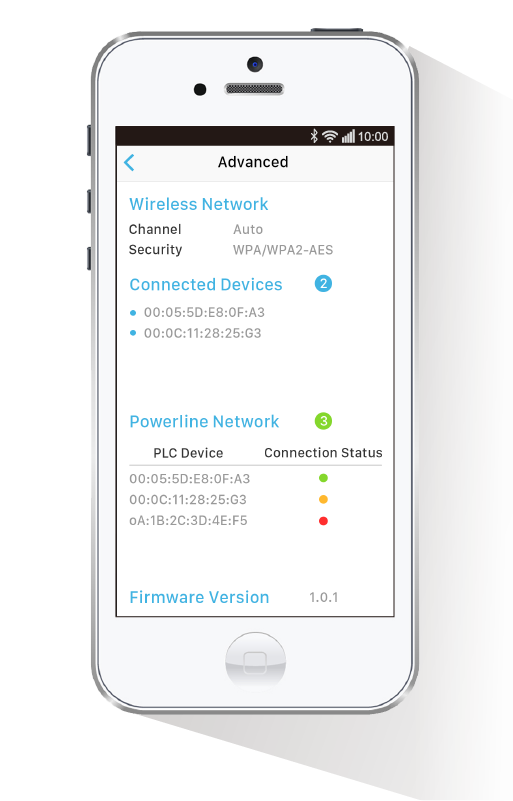

Network Management
View Connection Status

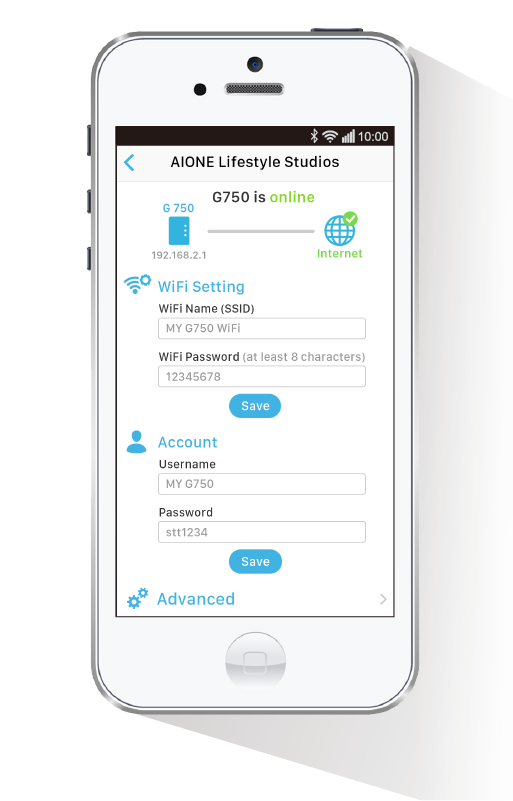

Password Management
Set WiFi password on APP
Download APP
Download for free.Start to enjoy your ST&T Smart Home
Super Fast
Super fast internet speed.Perfect for HD video streaming & online gaming.
Super Safe
128-bit AES Link Encryption with key management.Specification
| Model No. | G701 | G711 | G750 | G780 | G781 |
|---|---|---|---|---|---|
| Product Name | PLC Adapter | SmartLINK PLC Adapter | Hotspot Hybrid Adapter(WiFi+PLC) | 1 port PLC Plugthrough Adapter | 3 Ports PLC Plugthrough Adapter |
| PHY Rate | 600Mbps | ||||
| Effect Data Rate | TCP: ≤ 95 Mbps effective throughput UDP: ≤ 95 Mbps effective throughput |
||||
| Frequency Band | 2~68 MHz (With Mask) | ||||
| 95% Coverage UDP Throughput | 30Mbps | ||||
| Access Methods | Priority-based CSMA/CA channel access | ||||
| QoS | 4 Levels priority based contention access and multi segment bursting 8-levels VLAN priority field, TOS Field QoS Classification by destination MAC address and IP Port |
||||
| Modulation | OFDM (QAM 8/16/64/256/1024, QPSK, BPSK, ROBO) | ||||
| Nodes | Up to 7 PLC devices in 1 power circuit | ||||
| IGMP | Support for IPv4/IGMPv1,v2,v3 snooping Support for IPv6 and MLDv1,v2 snooping Max 16 source addresses and Group Members |
||||
| Encryption | 128-bit AES Link Encryption with key management | ||||
| Standards | IEEE 802.3, IEEE 802.3U, IEEE1901 and HomePlug AV2 compliant | ||||
| Port | One 10/100M Ethernet port | ||||
| Distance | AC Wire : 300 meters | ||||
| LEDs | Power Indicator(Green) Powerline Indicator (Green/Orange/Red) Ethernet Indicator (Green) |
Power Indicator (Green) Powerline Indicator (Green/Orange/Red) Ethernet Indicator (Green) WiFi Indicator(Green) |
Power Indicator (Green) Powerline Indicator (Green/Orange/Red) Ethernet Indicator (Green) |
Power Indicator (Green) Powerline Indicator (Green/Orange/Red) Ethernet 1,2,3 Indicator (Green) |
|
| Temperature (Humidity) |
Operating : 5~40°C(10~90% Non-Condensing) Storage : 0~50°C(5~90% Non-Condensing) |
||||
| Power Source | 100-240 VAC, 50/60 Hz, 0.1A | 100-240 VAC, 50/60 Hz, 0.2A | 100-240 VAC, 50/60 Hz, 0.1A | ||
| Push Button | Setting button for Network Security Management Reset button |
Setting/PLC Reset Button WPS/ WiFi Reset Button |
Setting button for Network Security Management Reset button |
||
| WiFi Standards | N/A | N/A | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b 64/128/152-bit WEP/WPA/WPA2, WPA-PSK/WPA2-PSK, ERIP ⟨ 20dBM 2.4-2.4835GHz |
N/A | N/A |
| Wireless Functions | N/A | N/A | Enable/Disable Wireless Radio,WDS Bridge, WMM, Wireless Statistics WIFI Access Control List(ACL) , WPS(PIN/PBC) |
N/A | N/A |
| Signal Rate | N/A | N/A | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
N/A | N/A |
| Power Outlet | N/A | N/A | N/A | (EU)100-240VAC, 16A, 50/60Hz (US)100-120VAC, 15A, 60Hz (UK)100-240VAC, 13A, 50/60Hz (FR)100-240VAC, 16A, 50/60Hz (CH)100-240VAC, 10A, 50/60Hz (AU)100-240VAC, 10A, 50/60Hz Noise Filter Insertion Loss : Up to 35dB at 1MHz – 40MHz |
|
| Cloud service | iOS/Android | ||||
| Dimensions | 69x50x22mm | 82x53x31mm | 84x56x41mm | 101x63x39mm | 120x66x39mm |
| Weight | 72 g | 103 g | 106 g | 184 g | 210 g |
| Certification | FCC/CE/LVD | CE/LVD | |||
| Power Consumptionabout 3.8W | about 3.8W | about 3.8W | about 7W | about 3.8W | about 6W |
| EuP | Meet the 2013 (<0.5W) | ||||
| TR069 | no | yes | yes | yes | yes |
| SmartLink | no | yes | no | no | no |
.
| Model No. | G671/G672 | G771 |
|---|---|---|
| Product Name | PLC+POE Hybrid Adapter, Indoor | PLC+POE Hybrid Adapter, Outdoor |
| PHY Rate | 600Mbps | |
| Effect Data Rate | TCP: ≤ 95 Mbps effective throughput UDP: ≤ 95Mbps effective throughput |
|
| Frequency Band | 2~68 MHz (With Mask) | |
| 95% Coverage UDP Throughput | 30Mbps | |
| Access Methods | Priority-based CSMA/CA channel access | |
| QoS | 4 Levels priority based contention access and multi segment bursting 8-levels VLAN priority field, TOS Field QoS Classification by destination MAC address and IP Port |
|
| Modulation | OFDM (QAM 8/16/64/256/1024, QPSK, BPSK, ROBO) | |
| Nodes | Up to 7 PLC devices in 1 power circuit | |
| IGMP | Support for IPv4/IGMPv1,v2,v3 snooping Support for IPv6 and MLDv1,v2 snooping |
|
| Encryption | 128-bit AES Link Encryption with key management | |
| Standards | IEEE 802.3, IEEE 802.3U, IEEE1901 and HomePlug AV2 compliant | |
| Port | One 10/100M Ethernet port | |
| Distance | AC Wire : 300 meters | |
| LEDs | Power Indicator(Green) Powerline Indicator(Green/Orange/Red) Ethernet Indicator (Orange) |
|
| Temperature (Humidity) |
Operating : 5~40°C (10~90% Non-Condensing) Storage : 0~50°C (5~90% Non-Condensing) |
|
| Power Source | 100~240 VAC, 50/60 Hz | |
| POE Power | Single IEEE 802.3af POE type Single port Endpoint PSE, Alternative B POE Output Class 0, 1, 2, 3, 4 PoE available on RJ-45 ports via Ethernet twisted pair cabling on port pins 4,5(+), 7,8(-). Uses spare pairs, not data pairs. PoE Ports Output voltage: (G671)nominal 48 VDC, deliver 7W to the PD. (G672)nominal 48 VDC, deliver 15.4W to the PD. |
Single IEEE 802.3af POE type Single port Endpoint PSE, Alternative B POE Output Class 0, 1, 2, 3, 4 PoE available on RJ-45 ports via Ethernet twisted pair cabling on port pins 4,5(+), 7,8(-). Uses spare pairs, not data pairs. PoE Ports Output voltage: nominal 48 VDC, deliver 15.4W to the PD. |
| Power cord | 0.9m AC Power cord | |
| Dimensions | 122x68x39mm | |
| Weight | 171 g | |
| Power Consumption | About 9.5W | About 18W |
| Certification | CE/LVD | |
| EuP | Meet the 2013 (⟨0.5W) | |
| TR069 | Yes | |
| Model No. | GK550 | GK556 | GK558 |
|---|---|---|---|
| Product Name | SmartLINK Ethernet Adapter | SmartLINK Hybrid Adapter(WiFi + PLC) | SmartLINK Plugthrough Adapter |
| PHY Rate | 1.3 Gbps | ||
| Effect Data Rate | TCP: ≤ 480 Mbps effective throughput UDP: ≤ 600 Mbps effective throughput |
||
| Frequency Band | 2~68 MHz (With Mask) | ||
| 95% Coverage UDP Throughput | 50Mbps | ||
| Access Methods | Priority-based CSMA/CA channel access | ||
| QoS | Integrated Quality of Service (QoS) Enhancements Hardware Packet Classifiers for ToS, CoS and IP Port QoS Classification by destination MAC address and IP Port |
||
| Modulation | OFDM (Supports OFDM 4096/1024/256/64/16/8-QAM,QPSK, BPSK and ROBO Modulation Schemes) | ||
| Nodes | Active/Total:63/128 nodes 4 overlapping networks for neighbor networks with CCo failover Max 128 bridged devices per station Up to 4096 addressable devices including bridged devices |
||
| IGMP | Supports IGMP managed multicast sessions IGMP snooping with multicast to multiple unicast IGMP/MLD Address filtering |
||
| Encryption | 128-bit AES Link Encryption with key management | ||
| Standards | IEEE 802.3, IEEE 802.3U, IEEE1901 and HomePlug AV2 with MIMO | ||
| Port | One 10/100/1000M Ethernet port | ||
| Distance | AC Wire : 300 meters | ||
| LEDs | Power Indicator(Green) Powerline Indicator(Green/Orange/Red) Ethernet Indicator (Green) |
Power Indicator(Green) Powerline Indicator(Green/Orange/Red) WiFi Indicator (Green) Ethernet 1,2 Indicator (Green) |
Power Indicator(Green) Powerline Indicator(Green/Orange/Red) Ethernet 1,2,3 Indicator (Green) |
| Temperature (Humidity) |
Operating : 5~40°C (10~90% Non-Condensing) Storage : 0~50°C (5~90% Non-Condensing) |
||
| Power Source | 100~240 VAC, 50/60 Hz | ||
| Push Button | Setting button for Network Security Management Reset butto |
Setting/PLC Reset Button WPS/ WiFi Reset Button |
Setting button for Network Security Management Reset butto |
| WiFi Standards | N/A | IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b 64/128/152-bit WEP/WPA/WPA2,WPA-PSK/WPA2-PSK EIRP ⟨20dBm 2.4GHz and 5GHz Dual-band 2.4G: 2T2R 802.11n(300 Mbps) 5G: 2T2R 802.11n/11ac(300Mbps/433Mbps) |
N/A |
| Wireless Functions | N/A | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics WIFI Access Control List(ACL) , WPS(PIN/PBC) |
N/A |
| Signal Rate | N/A | 11ac:Up tp 866Mbps(dynamic) 11n: Up to 300Mbps(dynamic) |
N/A |
| Signal Rate | N/A | N/A | (EU)100-240VAC, 16A, 50/60Hz (US)100-120VAC, 15A, 60Hz (UK)100-240VAC, 13A, 50/60Hz (FR)100-240VAC, 16A, 50/60Hz (CH)100-240VAC, 10A, 50/60Hz (AU)100-240VAC, 10A, 50/60Hz Noise Filter Insertion Loss : Up to 35dB at 1MHz – 40MHz |
| Dimensions | 82x53x31mm | 70x70x165mm | 66x120x39mm |
| Weight | 100 g | 500 g | 210 g |
| Power Consumption | About 3W | About 10W | About 7W |
| Certification | CE/LVD | ||
| EuP | Meet the 2013 (<0.5W) | ||
| TR069 | Yes | ||
| SmartLink | Yes | ||
