Keep an Eye on Everything
With “myLiveCam”, you can remote monitor your home, day or night, and send an alert if sound or motion is detected.

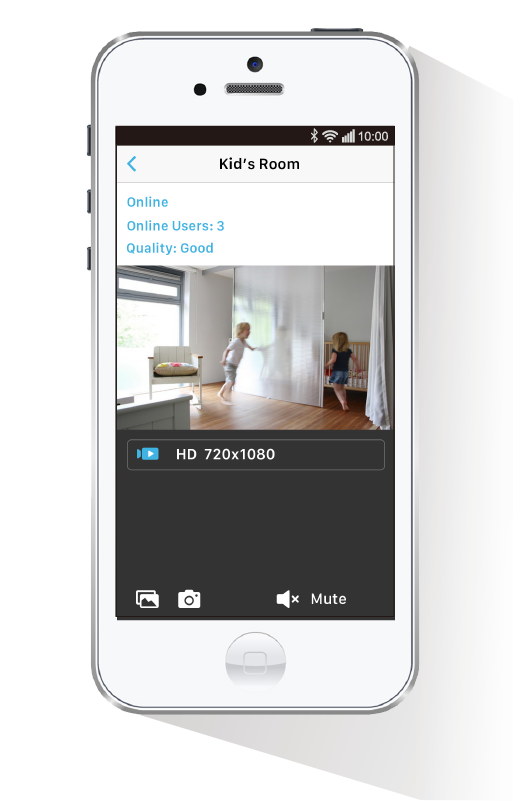

Live Video Remote Monitor
Remote monitor with smartphone. Take care of what you matter anywhere and anytime.
Intelligent Video Analytics
Motion/Audio detection
Automatically recording and sending a notification
Real-time Video Analysis

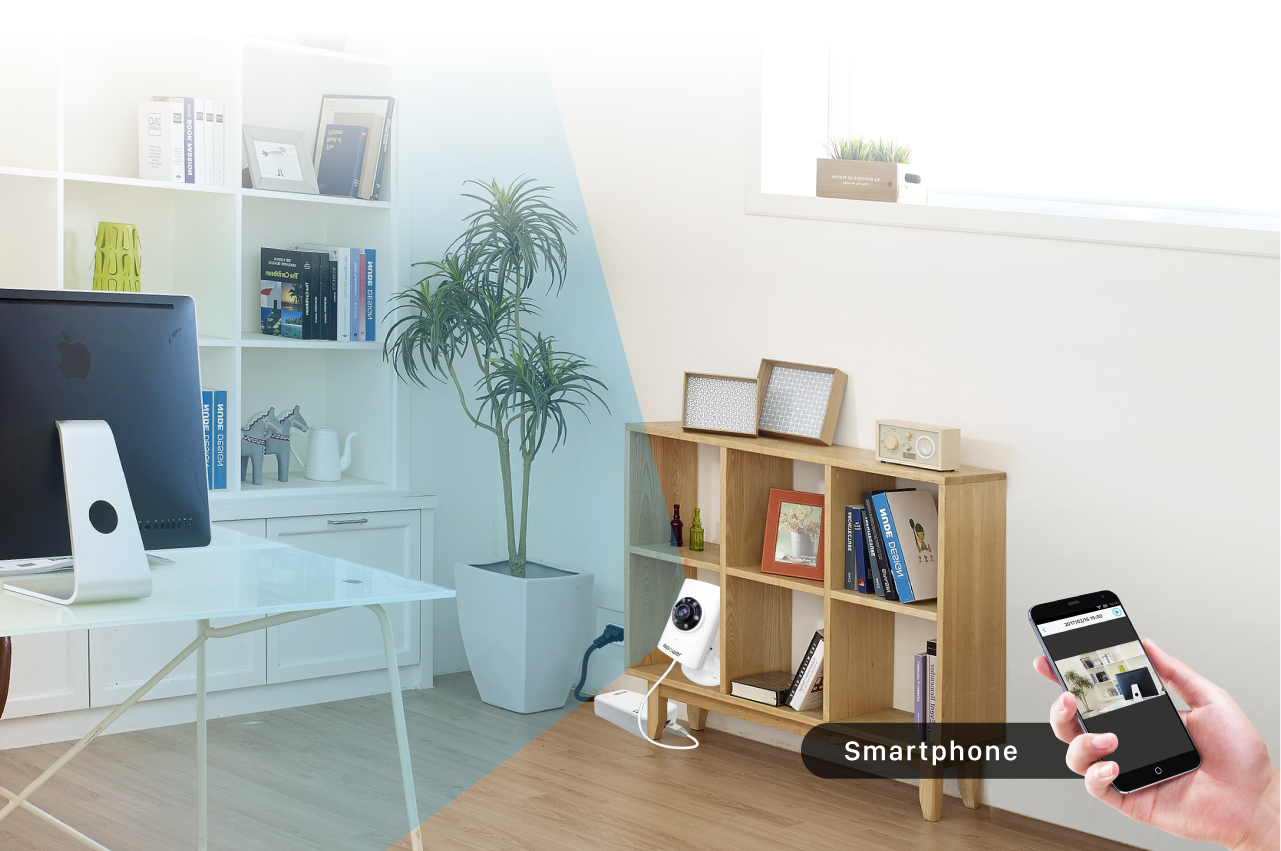

24 Hrs. video analytics with no eyes blinkingSmart Home in Your Hand
Simply download the APP and control all your smart home appliances. Then you can run your home just on your smart phone.

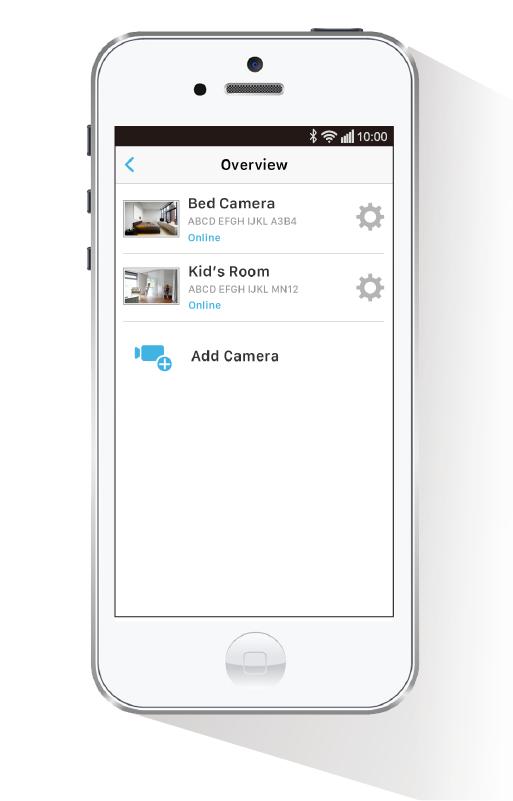

Remote Monitor
Monitor with Smartphone APP

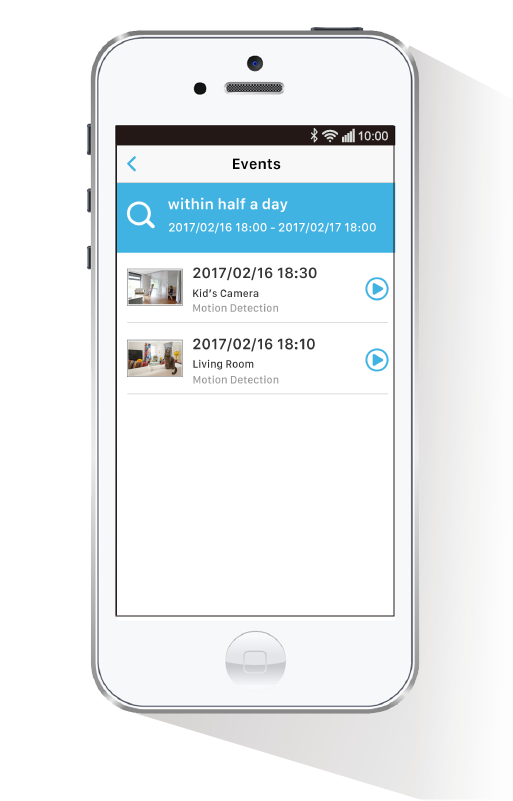

Motion Detection
Automatically recording and sending a notification
Picture & Video
Snap photos & video recording capability
Notification
via APP message or email
Download APP
Download for free.Start to enjoy your ST&T Smart Home
HD & Wide-angle Vision
Provide you more of the room
Night Vision
clear images even in low-light conditionsSpecification
| Model No. | A7201 | A7251 | A7271 | A7281 |
|---|---|---|---|---|
| Product Name | HD LiveCam (Ethernet) | HD LiveCam (WiFi) | HD LiveCam (Power-over-Ethernet) | HD LiveCam (Powerline PLC) |
| Camera Specification | ||||
| Sensor | 1/4" 1.3MP Progressive CMOS | |||
| Lens Focus | Fixed Lens 3.6 mm Max Aperture F2.0 Manual Focus |
|||
| Zoom | Digital Zoom using Display Device | |||
| IR Filter | Two Band IR Filter | |||
| IR LED | Φ5 6 LED 6 meter illumination distance |
|||
| IR Cut | V | |||
| Min. Lux | Daytime 2.5 Lux, NightTime 0.3 Lux | |||
| View Angle | H:78.9, V:43 , D:91.9 | |||
| Shutter Speed | 1/50s ~ 1/100,000 s | |||
| S/N Ratio | ⟩ 50dB (AGC off) | |||
| Focus Range | From 1M to infinity | |||
| Video Codec and Stream | ||||
| Support Format Frame | H.264/M-JPEG/MPEG4 1 ~ 30 fps | |||
| Single Stream (PC Mode) |
720p HD, 1280x720 @ 30 fps max VGA 640x480 @30 fps max QVGA 320x240 @ 30 fps max |
|||
| Single Stream (P2P Mode) |
720p HD @ 1-20 fps VGA 640x480 @ 1-30 fps QVGA 320x240 @ 1-30 fps |
|||
| Multiple Stream | Stream1: 1280x720 1~ 20fps Stream 2: 640x480 @ 1~ 30 fps Stream 3: 320x240 @ 1~ 30fps |
|||
| Video Process and Control | ||||
| Motion Detecion | V | |||
| 3D NR | V | |||
| WDR | V | |||
| Exposure | Auto | |||
| White Balance | Auto | |||
| Gain Control | Auto | |||
| Split Screen | x4 for iPad (Phase II) | |||
| Reset Button | Recall System to Default Setting | |||
| Image Rotation | H/V Flipping | |||
| AUdio | ||||
| Audio Codecs | ADPCM | |||
| Audio Communication | One Way | |||
| MIC | Option | |||
| Speaker | Option (1W) | |||
| Networking | ||||
| Network Interface | one RJ-45 10/100Mb Ethernet slot | Wi-Fi, IEEE 802.11 b/g/n | one RJ-45 10/100Mb Ethernet slot Supports 802.3af PoE device Class 2 |
HomePlug AV2 600 Mbps Supports IEEE 1901 solution |
| Network Protocol | Support TCP/IP, HTTP, ICMP, DHCP, FTP, SMTP etc. | |||
| Internet Security(Option) | Supported by checking the UID and password Smart link Proprietor(built-in) and AES-128 |
|||
| Security | ||||
| Alarm Action | Support message | |||
| Recording | Support "Always" and "Motion" Mode Recording format: M-JPEG and H264 Support Recycle recording |
|||
| Memory | ||||
| SD Card | Support up to 32G Micro SD Card Support up | |||
| Power Supply and Environment Conditions | ||||
| Power | Input: 100-240VAC, 50/60Hz Output: 5VDC, 1.0A About 4.0W |
Input: 100-240VAC, 50/60Hz Output: 5VDC, 1.0A |
Input: 50-57VAC PoE 7W |
Input: 100-240VAC, 50/60Hz, with AC power cord |
| Power Consumption | External AC-to-DC switching power adapter | About 4.8W | About 6.5W | About 6.5W |
| Operation Temperature Storage Temperature |
-10˚C to 50 ˚C(14˚F to 122 ˚F) -20 ˚C to 70 ˚C(-4 ˚F to 158 ˚F) |
|||
| Humidity | 20-80% RH non-condensing | |||
| Using Environments | Indoor use | |||
| Other | ||||
| LED | Power: Blue | Power: Blue Wifi: Green |
Power: Blue | Power: Blue |
| Push button | Reset Button | Reset Button WPS Button |
Reset Button | Reset Button |
| Transmission distance | Up to 100m | Up to 20m | Up to 100m | Up to 300m |
| Users | Live viewing for up to 4 clients (depend on network Traffic Status) |
|||
| Cloud service | iOS/Android | |||
| Dimensions | 95.2 x 60 x 38.9mm | 98.1 x 60 x 51.4 mm | ||
| Weight | 97 kg | 97 kg | 131 kg | 140 kg |
| Certification | CE/FCC | |||
